10000 Ton Oxygen-free Copper Upcasting Machine

Get a Quote Now

Description

Reviews

Specifications

Continuous Upcasting Production Line is a new technology to produce oxygen free copper rod, tube, and slab at a large length. The copper rod and profiles are featured with high conductivity and low oxygen content, Compared with the traditional technology, this new method requires less capital investment, is easier to operate, flexible in changing production size, environment-friendly and its products are of high quality.

Annual capacity	10000 ton
Strands of casting rod	20
Diameter of casting rod	Φ8.0mm to φ20.0mm
Upward speed	0~2800mm/min
Annual working hour	7920h
Speed of copper melted	1350kg/h
Max power	500KW ~ 520KW
Installed capacity	920KVA

Workflow

Copper cathode → melting furnace → transition furnace → holding furnace → casting rod → take-up → ready for sale or for further process

Main Components

Components of contiuous upcasting production line

1	Induction furnace system
2	Induction furnace electrical control system
3	Continuous upcasting machine
4	Servo control system
5	Location limiting device
6	Take-up machine
7	Water cooling system
8	Temperature measuring system
9	Material feeding unit

2000 Ton Upward Continuous Casting Machine

Furnace

The power frequency induction furnace consists of three parts: melting furnace, transition bin, and holding furnace. Cathode copper plate is melted into copper liquid in a power frequency furnace.

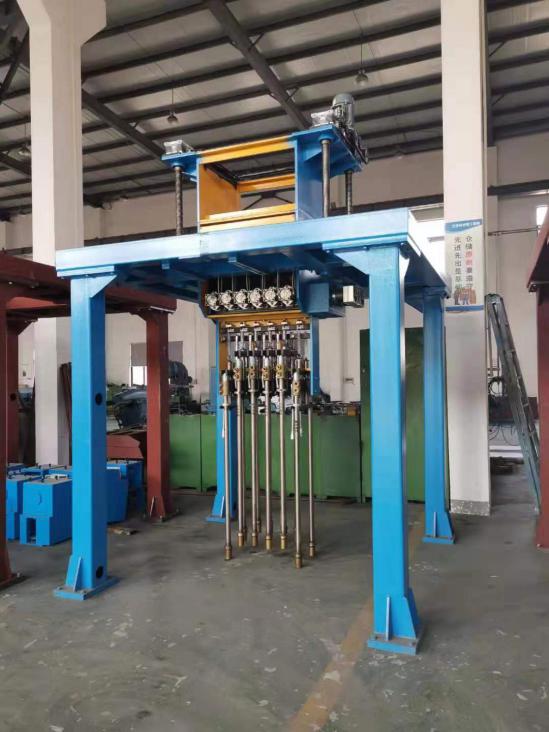

Continuous upward casting machine

The continuous casting machine is the main equipment to achieve the upward continuous cast. It is made up of a traction device, a liquid location tracking system, and a crystallizer. And it is four stands structure design.

Take-up unit

This take-up device is a twin-head coiler. It consists of wire traction, a coiling device, and a turning plate. It can take φ8mm～20mm rods.

Manufacturing Workshop

Specifications

10000 Ton Upward Continuous Casting Machine

Delivery

Our Customers

NO	MODEL	CASTING STRANDS	CASTING DIAMETER	RUNNING POWER (KW)	TPA	DRIVE	INSTALLED CAPACITY (KVA)
1	SL04-Q2B-S-B-8/20	4	Φ8-20	160	2000	SINGLE SERVO	330
2	SL06-Q2B-S-B-8/20	6	Φ8-20	180	3000	SINGLE SERVO	330
3	SL06-Q2B-S-B-12.5/30	6	Φ12.5-30	180	3000	SINGLE SERVO	330
4	SL08-QL-S-B-8/20	8	Φ8-20	230	4000	DOUBLE SERVO	450
5	SL08-QL-S-B-12.5/30	8	Φ12.5-30	230	4000	DOUBLE SERVO	450
6	SL10-QL-S-B-8/20	10	Φ8-20	260	5000	DOUBLE SERVO	470
7	SL10-QL-S-B-12.5/30	10	Φ12.5-30	280	6000	DOUBLE SERVO	480
10	SL16-QG-S-B-8/20	16	Φ8-20	380	8000	DOUBLE SERVO	750
11	SL16-QWB-S-B-12.5/30	16	Φ12.5-30	500	10000	DOUBLE SERVO	9550
12	SL20-QWB-S-B-8/20	20	Φ8-20	500	10000	DOUBLE SERVO	950

How to get a quote

For copper rod upcasting machines , pls inform :

1, your production capacity requirement , how many tons per year or how many kgs per hour ;

( we calcualte our capacity based on : 24 hours working per day ; 11 months working per year ) .

2, your copper rod diameter size ;

3, your raw material situation ( copper cathod or scrap ) .

With above specific information , we will provide the quotation accordingly . Thanks !
